The customization and convenience of the Elgato Stream Deck has made it a big hit in the streaming world. If you’re using a Pearl Nano, Pearl Mini, or Pearl-2 system, you can add Stream Deck to your live production workflow to boost efficiency with additional functions.
Here’s how.
Follow our step-by-step instructions and you’ll have your Stream Deck working with Pearl in no time.
In the drop-down menu, you’ll see options for Stream Deck, Stream Deck XL, Stream Deck MK.2, Stream Deck Mini, Stream Deck Pedal, and Stream Deck Mobile. Select your product, and your operating system, and download the installer.

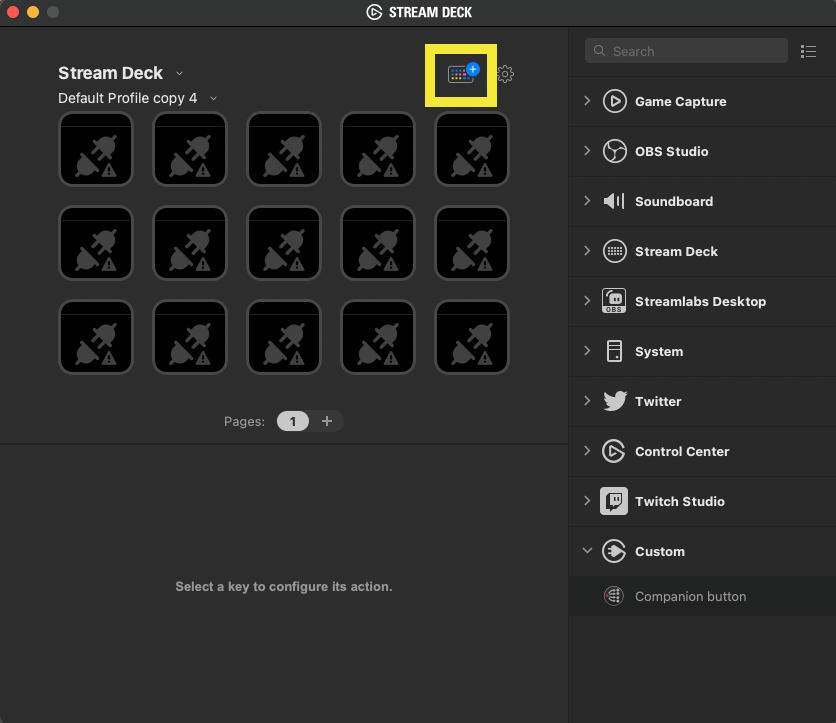

When the UI appears, click on the Stream Deck Store icon at the top. The icon looks like a Stream Deck with a blue plus sign on it, next to the cog.

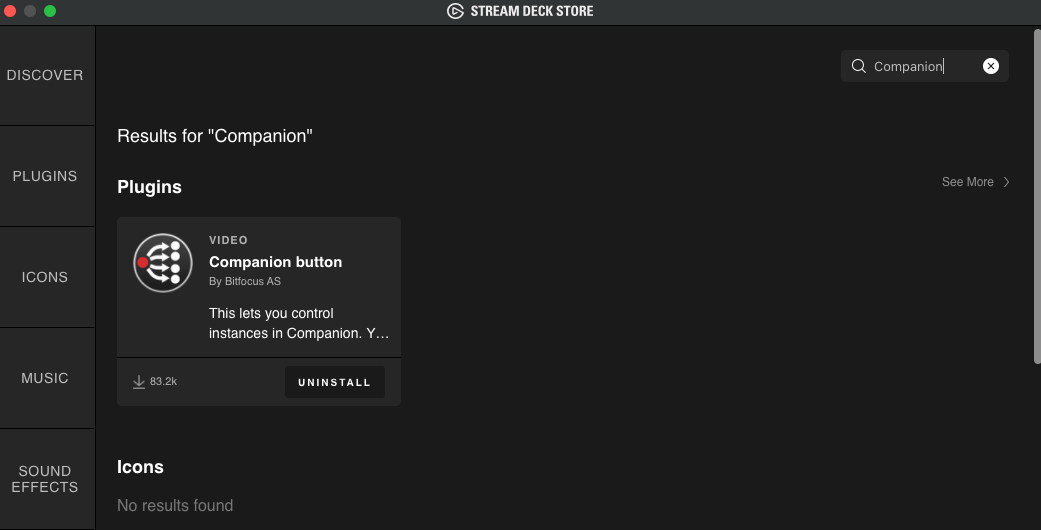

Within the Stream Deck Store, search for “Companion” and you should see a result for “Companion button” by Bitfocus AS. Install it.

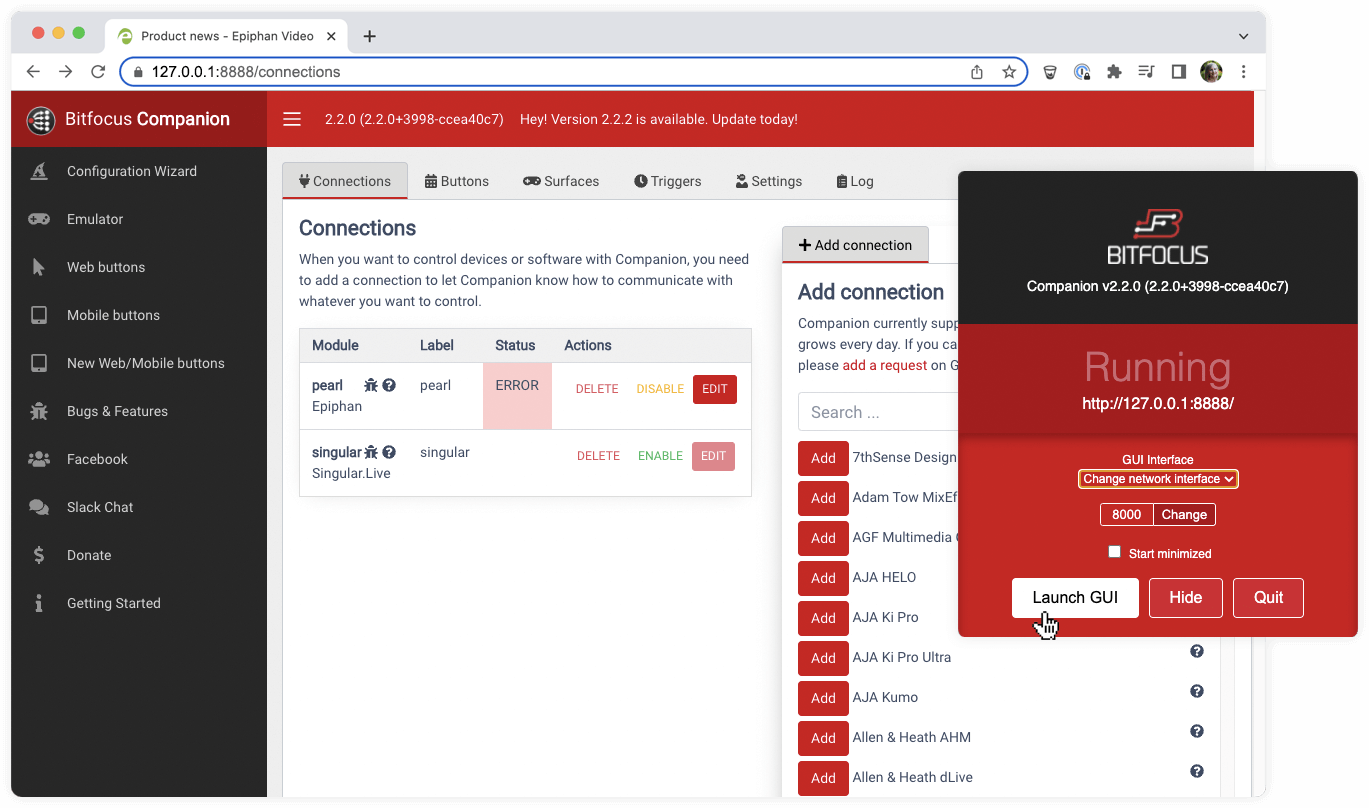

Open the Companion app and hit the Launch GUI button at the bottom. This will open your default web browser.
To complete this step, you’ll need to be connected to the same network as the Pearl system, or using a Virtual Private Network (VPN).

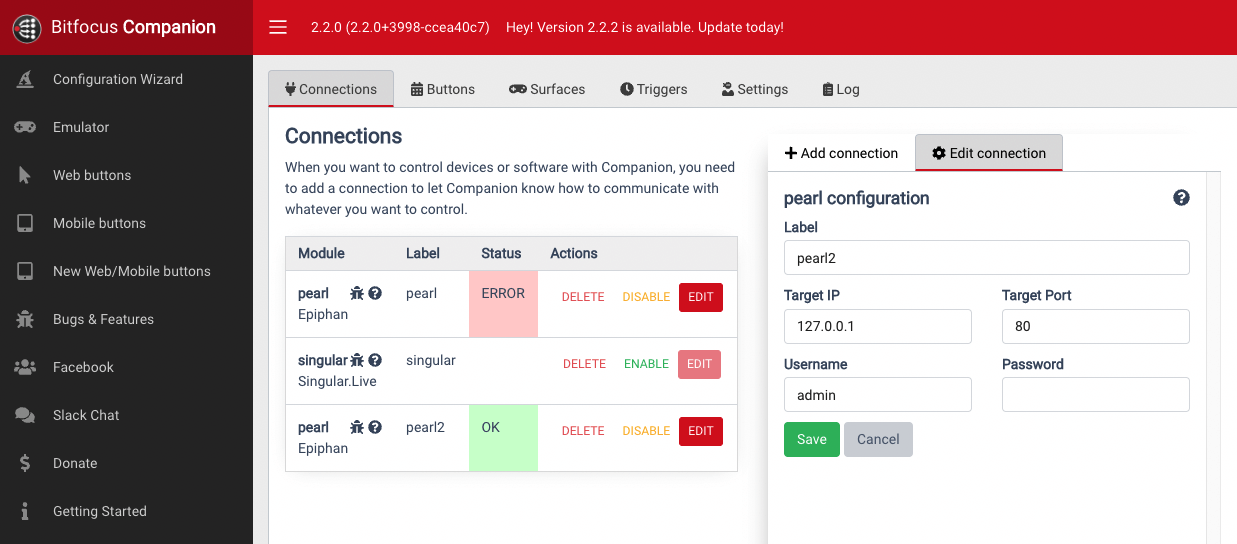

Within the Connections tab, search for “Pearl” in the pane labeled “Add connection.” Then, punch in your Pearl’s IP address, username, and password, and hit Save. Over in the other pane, you should see “OK” highlighted in green in the status column.
Enter the Surfaces tab near the top of the UI and make sure your Stream Deck is connected to Pearl. If it’s not showing up, try the orange Rescan USB button. Otherwise, check your USB connection and cable.

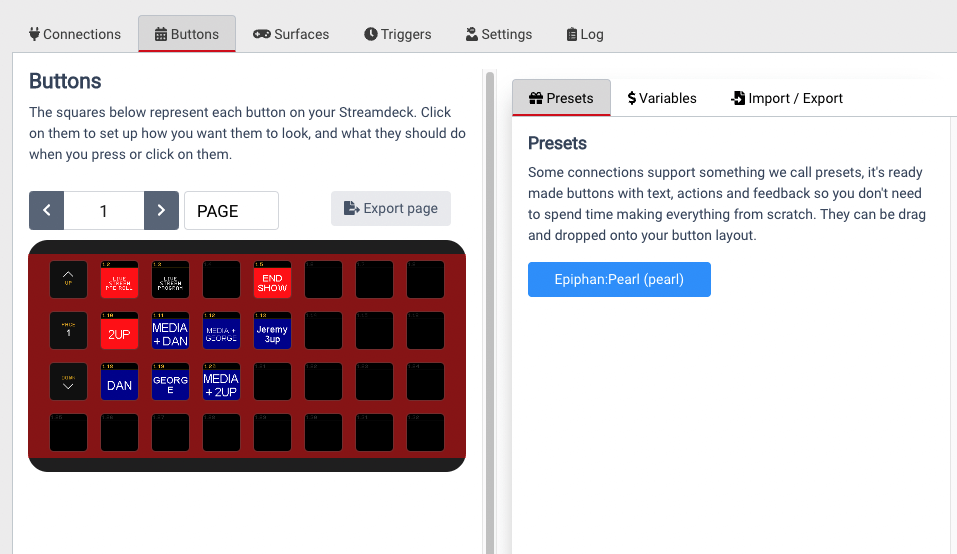

Enter the Buttons tab at the top. In the Presets tab in the right-hand pane, click the blue button that says “Epiphan:Pearl” and whatever label you gave the system when you connected it.

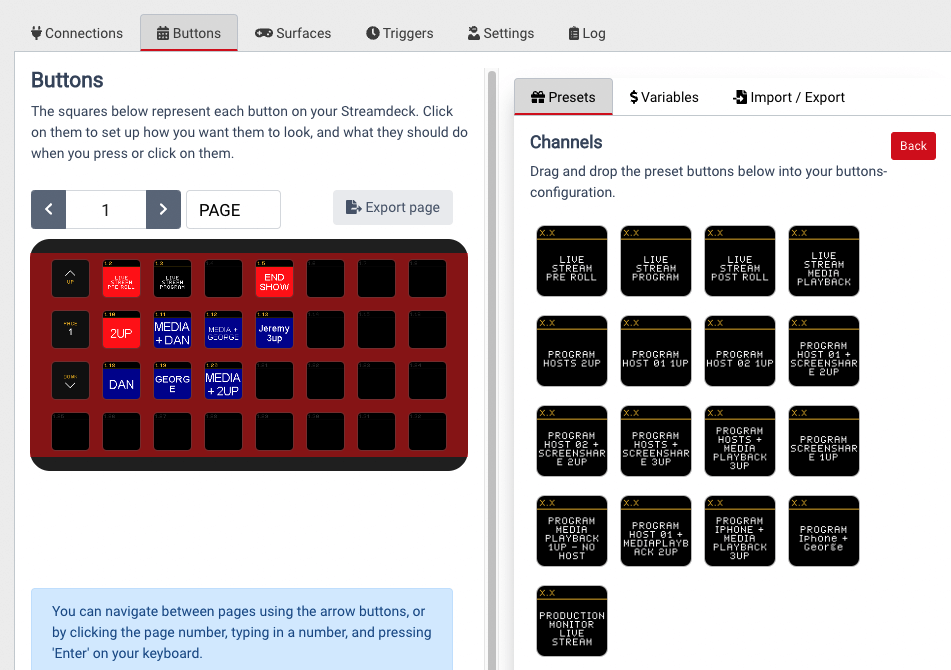

You’ll see three more blue buttons, labelled Channels, Publishers, and Recorders. Click on one and preset buttons will appear that match what you’ve set up in Pearl’s admin panel. Place these presets wherever you’d like. Then you can customize the button text, font size, background color, and more.
That’s all there is to it. Now, time to create some stellar live video with your Epiphan Pearl and Elgato Stream Deck.
To learn more about Epiphan products, check out epiphan.com/products.
